Color Coated Steel Sheet

Corrugated steel roofing sheets have been around for
many years and are still popular today, giving a more traditional look, in fact corrugated steel roofing is the only cladding that should be used in conservation areas. We offer many different colours and galvanized roofing sheet.

+86 18063524318

shangang3@sdqingdao.com

◉ Product Details

Corrugated steel roofing sheets have been around for many years and are still popular today, giving a more traditional look, in fact corrugated steel roofing is the only cladding that should be used in conservation areas. We offer many different colours and galvanized roofing sheet.
Name	color coated corrugated roofing sheet
Material	SGCC,SGCH,JIS G3302,DX51D,DX52D,DX53D
Thickness	0.10 -1mm
Width	600-1100 mm
length	2-5 meters
Tolerance	Thickness: +/-0.02mm
Tolerance	Width:+/-2mm
Color coating	Zinc Coating: 30g/m2-275g/m2
Color coating	Color Coating: Top:15-25µm / Back: 5-8 µm
Surface treatment	unoil,dry,chromate passivated, non-chromate passivated
Certification	ISO 9001-2008,SGS,CE,BV
Technique	Cold rolled—>hot dipped galvanizing—>Color Coated —> corrugated
Weight of each package	As required
Depth of corrugated	from 15mm to 18mm
Pitch	from 75mm to 78mm
Colors	refer to RAL numbers or customer sample,common colors are sea blue, white grey and bright red.
Corrugated Sheet Raw	Galvanized steel, Aluzinc Steel, Aluzinc Pre-painted sheet and
Materials	Aluminium sheet.
Gloss	The gloss can changeable by Customers' Request.we can also do some High gloss.
Paint type	PE or PVDF
Standard	GB/T 12754-2006;ASTM A 755;EN 10169;JIS G 3312;AISI;BS;DIN
Grade	CGCC/SGCC/SGCH/SPCC
Yield strength	550MPA/As required
Tensile strength	600MPA/As required
Hardness	Full hard/soft/As required
Application	various roofs or walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc.

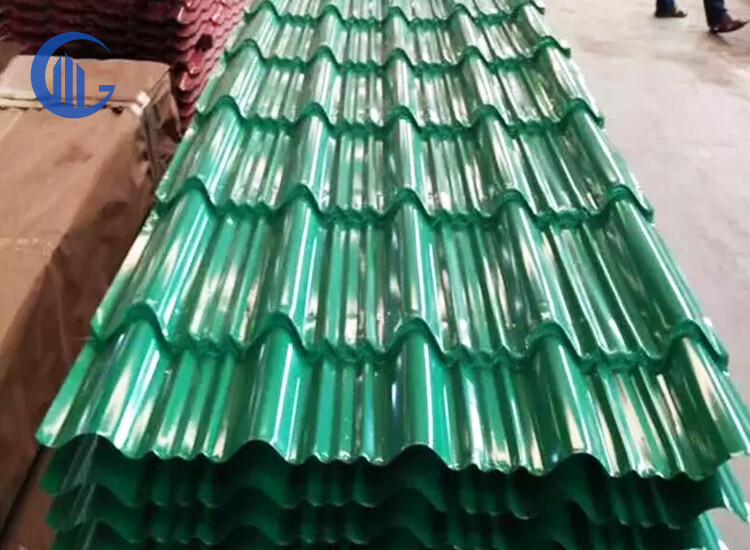

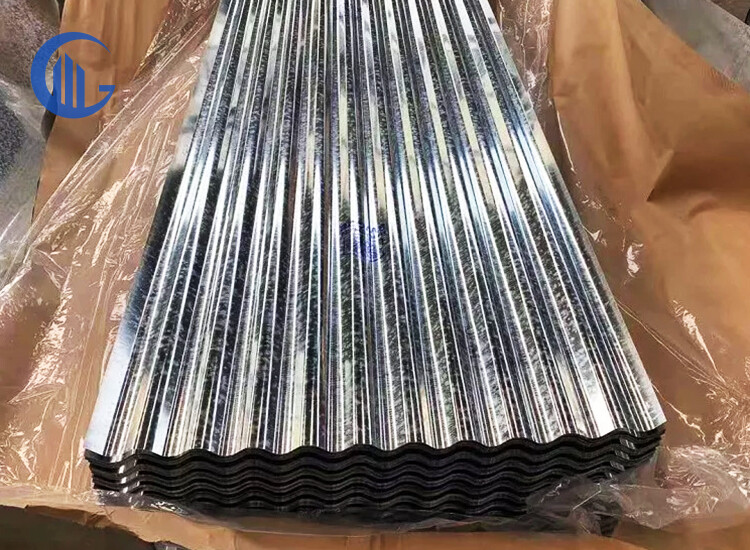

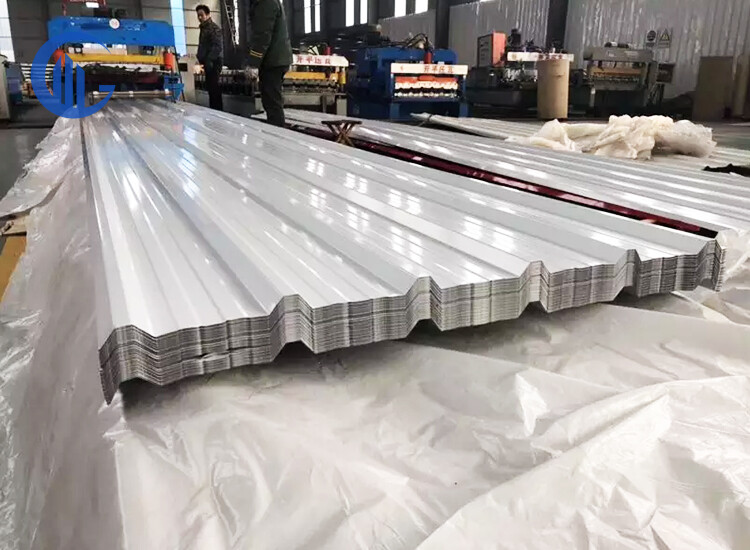

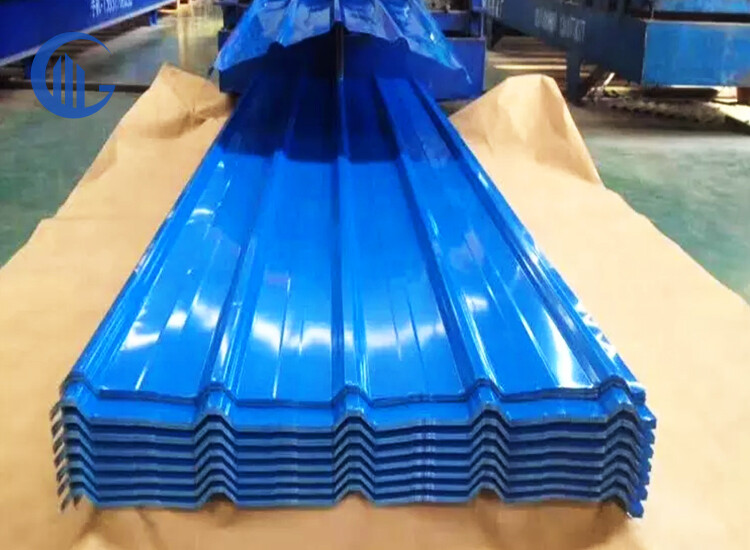

◉ Product Show
